Description

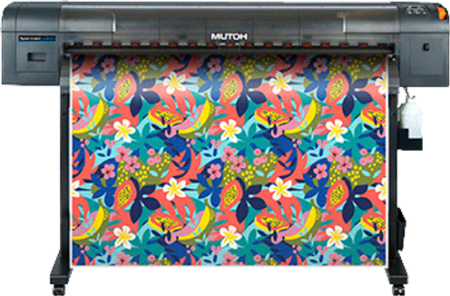

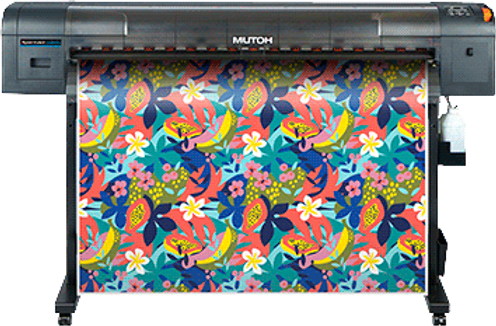

MUTOH 1371mm wide Dye-Sublimation Printer
Single head CMYK roll-to-roll
The MUTOH XpertJet series, which delivers excellent print quality and high productivity, now has a 54“/1.3m wide water-based inkjet printer. In a compact body with a space-saving design that‘s easy to handle, equipped with MUTOH’s latest unique technologies, the XpertJet 1341WR Pro is designed for high image quality and user convenience.
The XpertJet 1341WR Pro is an ideal printer for trade show graphics, flags, banners, custom interior design, apparel, custom merchandise and more.
Highest Quality Print
The ‘AccuFine’ print head is wider and delivers higher density with more accuracy than conventional print heads achieving both high-speed printing and excellent image quality. Even at high speed, the ‘AccuFine’ print head can produce high-quality solid printing with less banding.
Conventional head
Increased nozzle row length contributes to higher productivity
Conventional head
High density nozzle pitch contributes to higher image quality
High Productivity with ‘AccuFine’
Throughput of XpertJet 1341WR Pro (m2/h)
NEW Print Effect ‘i-screen’
The new print effect ‘i-screen’ created from MUTOH’s ‘Intelligent Interweave’ printing technology, optimizes the new print head ‘AccuFine’. By arranging the dots in a way that takes into account how they look, reducing banding for smoother print images.
Conventional effect
i-screen
MUTOH’s Unique Technologies for Automation and Efficiency
An automatic bi-directional alignment system has been added to the existing ‘DropMaster technology’, and it has evolved into DropMaster 2. The built-in sensor on the carriage automatically calibrates bi-directional alignments, saving time and reducing variation in adjustment among operators.
Before Drop Master 2
Without automatic bi-direction
After Drop Master 2
With automatic bi-direction
By printing a print pattern and reading it with a sensor, paper feed correction can be automated. This reduces the time and effort required for adjustment and media loss.
Before automatic feed correction
After automatic feed correction
By printing a barcode on the end of media, the printer will read the barcode and recognize the amount of media remaining when the media roll is loaded at a later date.
In the event of blocked nozzles, printing can be performed temporarily using only active nozzle blocks, maintaining print production and print quality.
High Media Compatibility
Head Height Setting
The optimal print head height can be selected from 3 stages depending on the media being used. This reduces the risk of contact and also provides the highest print quality.
High 2.5mm
(Media up to 1.3mm thick)
Middle 2.0mm
(Media up to 0.8mm thick)
Low 1.5 mm
(Media up to 0.3mm thick)
Pressure Roller Control
To prevent cockling, the pressure rollers can be individually canceled to finely adjust the pressure applied to the media. A wide range of media types can be fed under optimal conditions.
Optional 20kg and 30kg take-up unit and media holder for a smoother media handling capability
30kg take-up unit
+
Media holder for feed
