Features

• Achieved to print on 25um film that can be used for thin electronic components as the internal base material of information terminals. (MSDR-30)
• High productivity obtained by cylinder type screen printing.
  –> About the advantages of cylinder screen printing machine.
• High-level of printing accuracy provided by the functions of position detection and alignment via CCD camera.
• Various numerical settings are available with the touch panel.
• Reducing setup time drastically by automated screen frame initial positioning function. (MSDR-30)
• The compact design dryers which were developed at the same time.
• Optimal line facility can be flexibly proposed for customer requirements, such as multicolor printing or combination with other processing equipment.

Suitable for advanced industrial screen printing, e.g., Multi-Layer Ceramic Capacitor (MLCC), Flexible Printed Circuit (FPC), biometric sensors like blood glucose sensor chip, membrane switch, and transfer printing.

Major Specifications

* Printing size, Web thickness and Processing speed are subject to printing materials and printing conditions.

Major Features (Including Optional Equipment)

• – CCD Camera alignment system (X,Y)
• – Screen Frame Positioning by Numerical Control
• – Web Guide Devices
• – Squeegee and Flood Coater Pressure Control by Servo drive Motor
  *For MSDR-30, Flood Coater Pressure Manual Adjustment
• – Printing Stroke and Clearance Adjustment Control by Servo drive Motor
• – Print length adjustment fucntion
• – Plate initial positioning function *Only for MSDR-30

Reference layout drawings

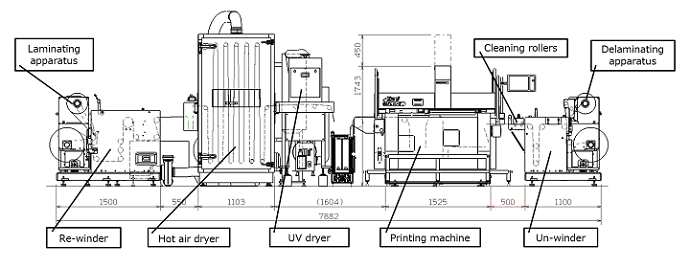

• • MSDR-30 Single-color printing line

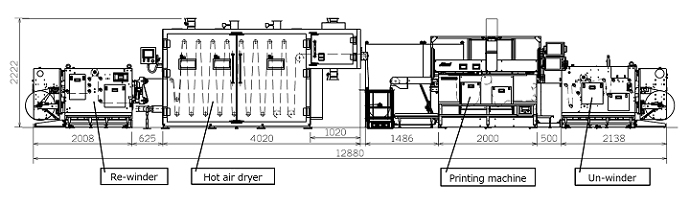

• MSDR-60 Single-color printing line


Main components of MSDR Printing Line

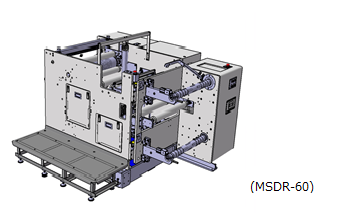

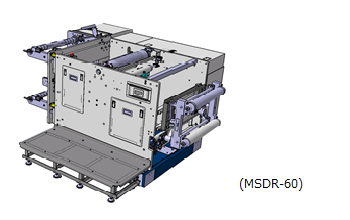

• Un-winder



• – Unwinding speed regulation
  The unwinding shaft detects the residual amount of material (web) and controls the feed amount and tension in conjunction with the winding shaft.
• – Web Guide Units
  Adjust the web to the printing position by the movement of the unwinding shaft (laterally slides) and the guide roller (tilts) according to the web edge sensor.
• – Delaminator [option]
  Peels the protective film while feeding the web. The web does not get damage since both work run at the same speed.
• – Static eliminator bar [option]
• – Dust Cleaning device [option]

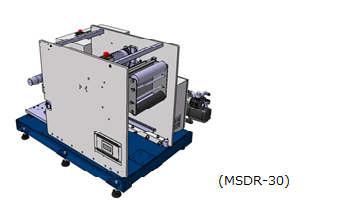

• Re-winder



• – Winding speed regulation
  The shaft controls the winding amount and tension of material (web) in conjunction with the unwinding shaft.
• – Web Guide Unit
  Correct the web meandering by the movement of the winding shaft (laterally slides) and the guide roller (tilts) according to the web edge sensor.
• – Laminator [option]
  Attaches a film immediately after printing and drying process to protect the printed surface. The web does not get damage due to feeding in accordance with the winding tension.

• Hot Air Dryer (Vertical, Turn type)



• – Air turn bars enable to transport web without contacting the printed surface.
• – Space-saving achieved by vertical conveyance.
• – Input/output control via the operation panel at the printing section.

* The specification given above is just one example. We will propose the most suitable ones depending on the purpose and requirements of the customer’s work.

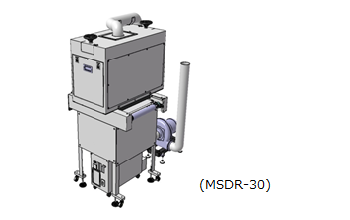

• UV curing device

• – Equipped with UV lamp x1 (high-pressure metal halide, height adjustable)
• – Input/output control via the operation panel at the printing section.

* The specification given above is just one example. We will propose the most suitable ones depending on the purpose and requirements of the customer’s work.
