Mutoh VJ-1638UH Mark II – Made for More Applications
Produce stunning high-quality graphics to be used across more applications with the MUTOH VJ-1638UH hybrid wide-format UV LED printer. The 1625mm (64”) wide printer is specifically developed for the commercial print and sign & display markets. The option to use MUTOH’s GREENGUARD GOLD certified US11 flexible UV LED ink or MUTOH’s UH21 rigid ink enables printing on a wider range of roll and rigid substrates.
Instant dry graphics are ready for application or post-processing. Using two of the latest generation piezo drop-on-demand print heads able to deliver print resolutions up to 1440 x 1440dpi and two long-life UV LED lamps for fast curing, the printer requires no warm-up time and is very energy efficient (< 770 Watt during printing).
Two UV Printers in One

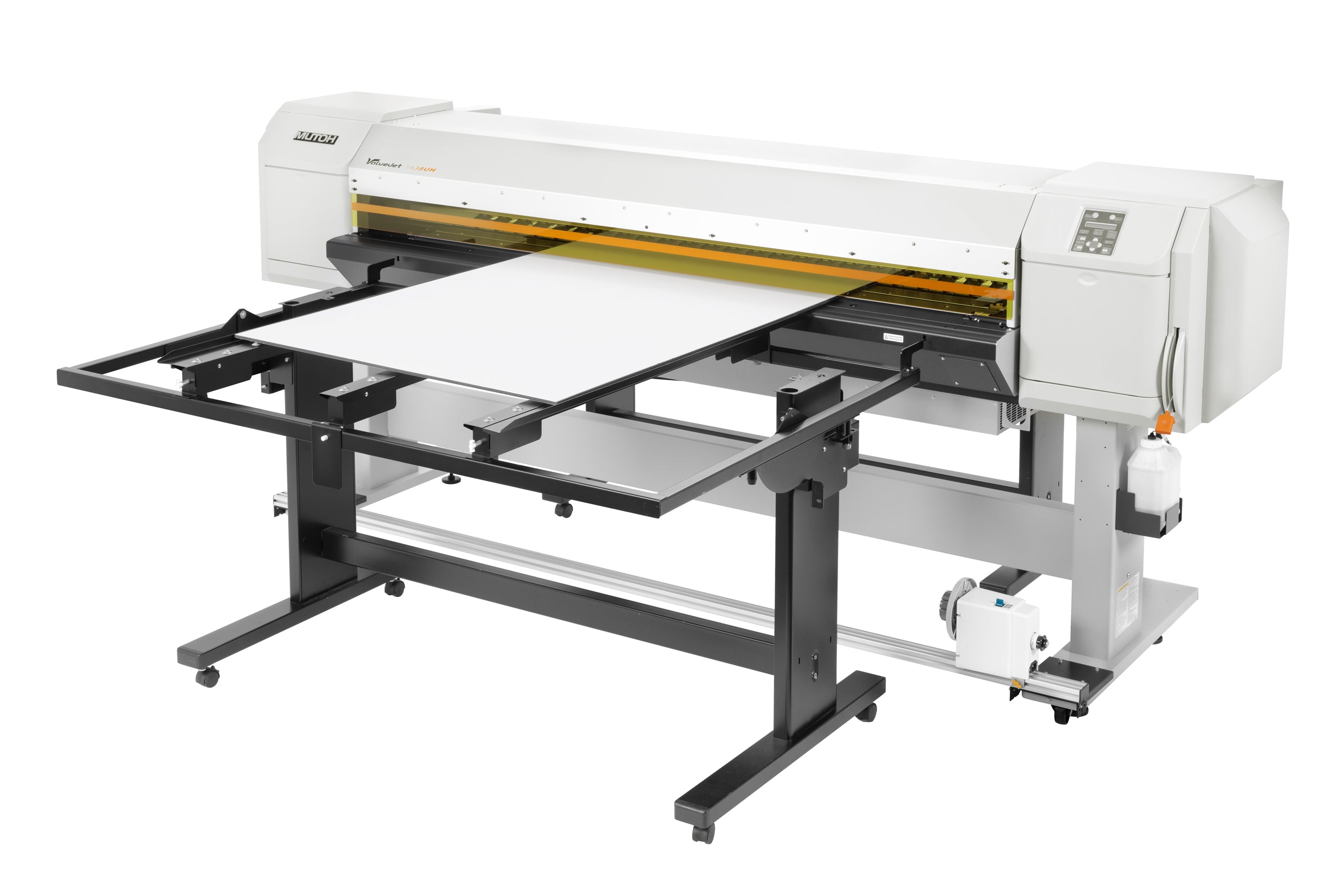

Rigid Media Handling

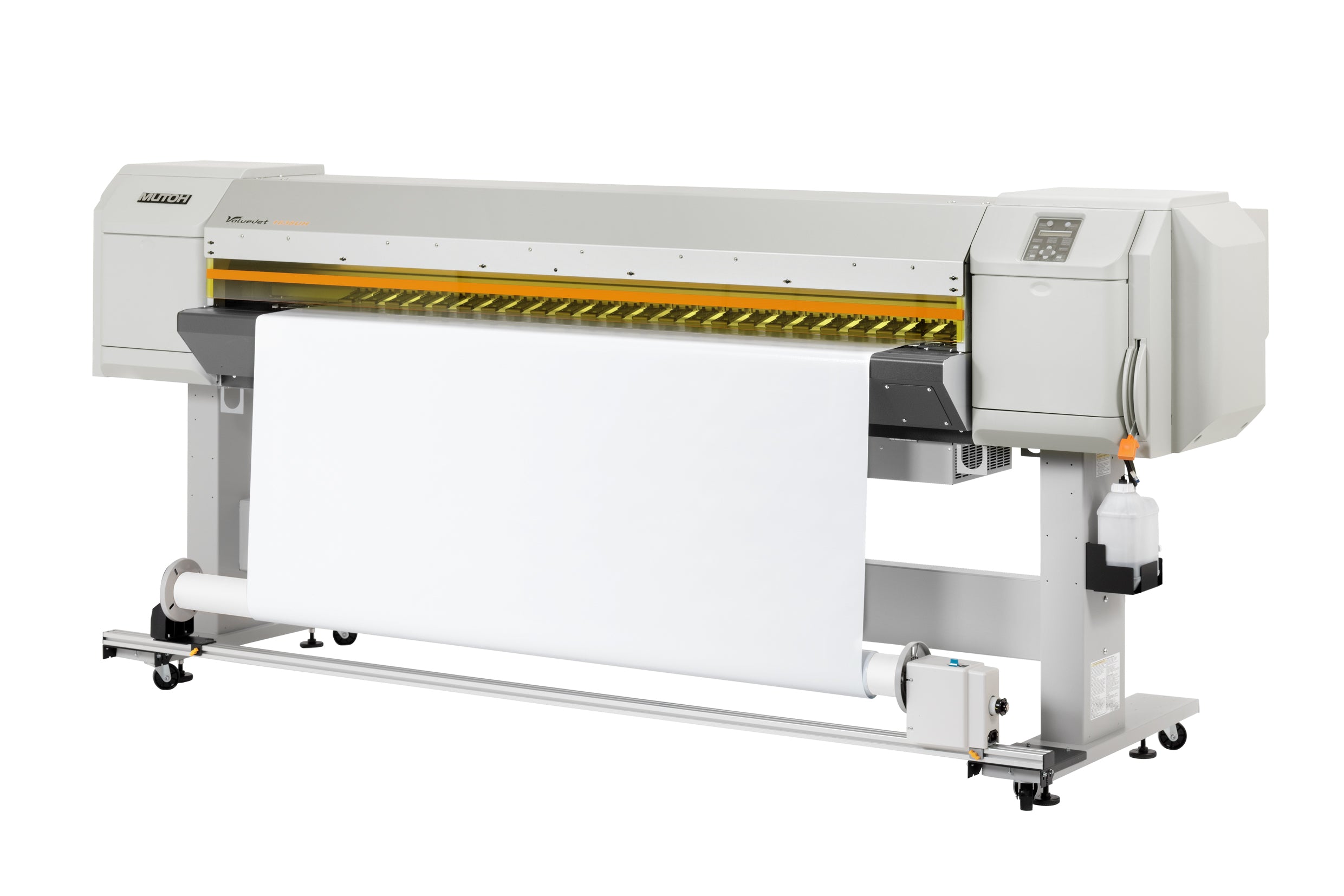

Roll Media Handling (optional take-up)
With a small footprint for roll-to-roll printing that easily converts to accommodate rigid media. Simply attach the media tables to the front and rear of the VJ-1638UH for direct to panel printing. The tables can be rolled away and fold up for easy storage when not in use.

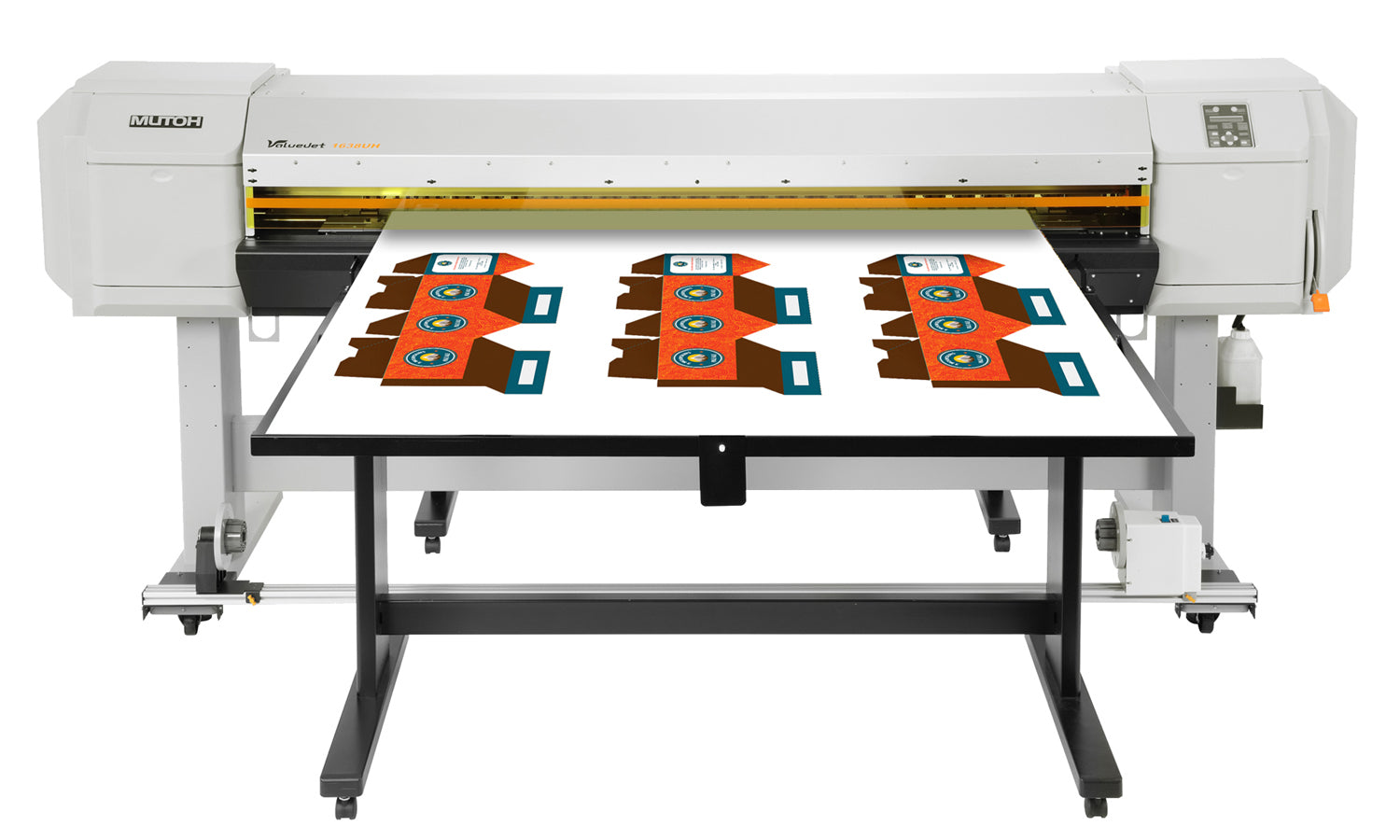

Rigid Media Support

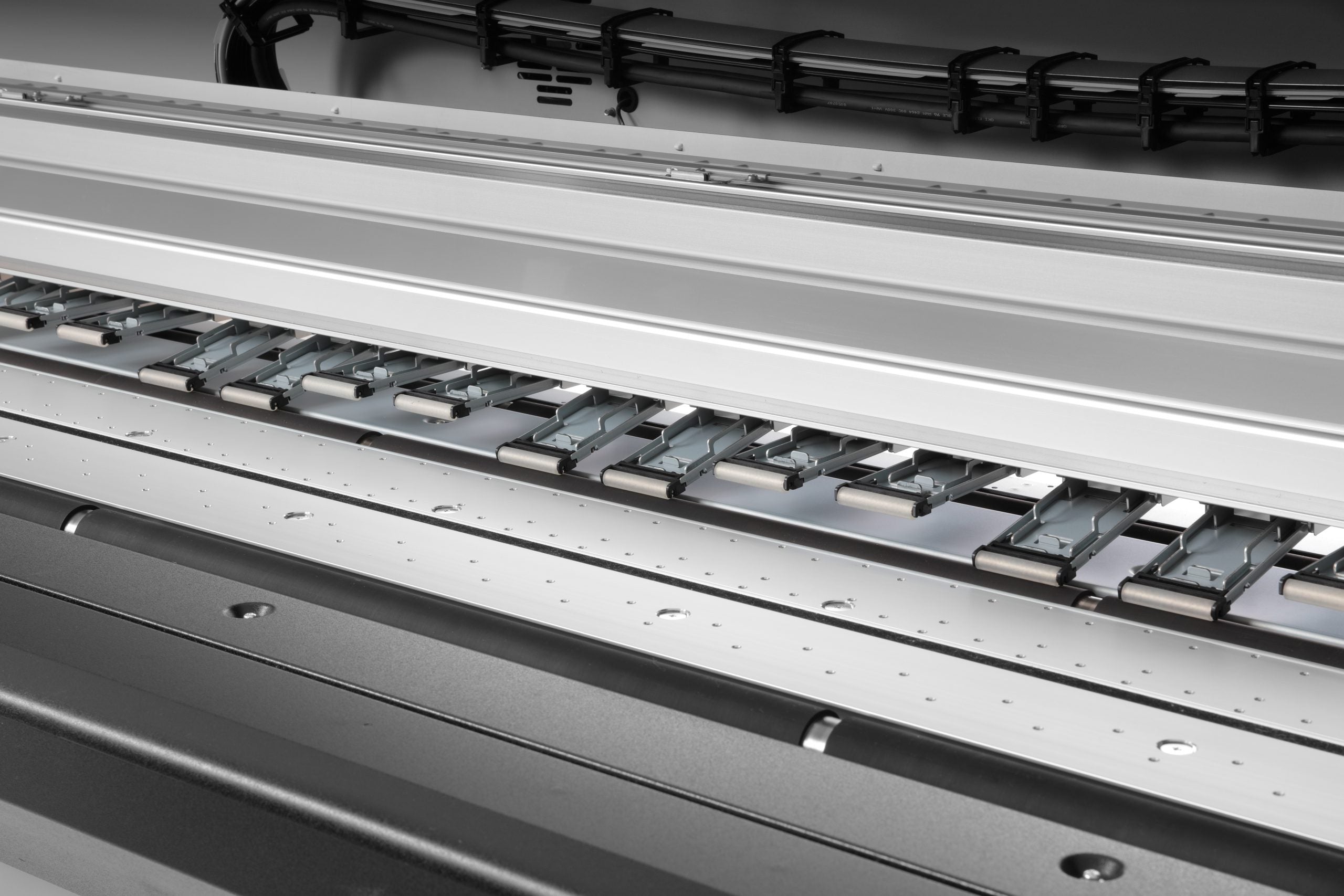

Individual Pressure Roller Adjustment
Rigid Boards up to 15mm
Media Retainer (optional)
Instant cure, roll-to-roll UV production. Prints come out dry and ready to finish or deliver.
720×720 production print speed of over 12m² per hour.
Print onto a wider range of media including roll-to-roll and rigid substrates up to 15mm thick, heat-sensitive substrates, vinyl, banner, canvas, wall covering, PP, PE, and more.
Lower energy consumption, no need for a dryer or heated platen.
US11 UV ink has no VOCs or HAPs
Take advantage of MUTOH’s instant cure UV printing technology to create multi-layer, colour-changing images for backlit applications. Print on to lightbox media or directly to acrylic.
Take advantage of CMYK with White and Varnish. Multiple layer configurations are achievable for creating gloss effects, textures, and double-sided viewing graphics. Discover numerous application possibilities.
Create amazing gloss effects and textures for white, non-white, and transparent media.
For reverse printing onto transparent media and spot gloss finishes.
3 Layer Print
For transparent media with graphics to be viewed from both sides (front and back) and textures and gloss effects.
Take your print to the next level. Print spot gloss or matte varnish, wherever you want it to go, continuously, perfect every time.
MUTOH UV Ink
MOTUH’s environmentally friendly US11 UV ink has no VOCs (volatile organic compounds) and no HAPs (harmful air pollutants). There is no need to install an air filtration or extraction unit. And MUTOH’s US11 ink is Greenguard Gold certified and compliment with the European Standard of safety of toys EN71 part3: 2013+A1:2014
MUTOH’s UH21 UV ink is ideal for rigid applications. With outstanding adhesion and superior resistance to abrasion and resistance to chemicals including gasoline, acetone, and IPA.
“Made in Japan Quality” is your certainty of excellence and lasting value.
MUTOH Genuine RIP Software
