Anatol Rapid Wave Flash Cure Unit

REQUEST A QUOTE

request a quote

This field is for validation purposes and should be left unchanged.
SKU: copy-of-anatol-comet-light-flash-cure-unit Categories: Anatol, Anatol Flash Cure Units, brand_Anatol, Screen Equipment, Screen Print Equipment, Textile Tags: Anatol, Anatol Flash Cure Units, brand_Anatol, Screen Equipment, Textile
  • Description
  • Additional information
  • Price Information

Description

Rapid Wave Flash Cure Unit

Fast flash curing saves energy and keeps production high.

Available in five sizes with a
cure area of 16” x 16” up to 30” x 40”



  • Description
  • Optional Features
  • Specifications
  • Certification & Warranty
  • Brochure
  • Support

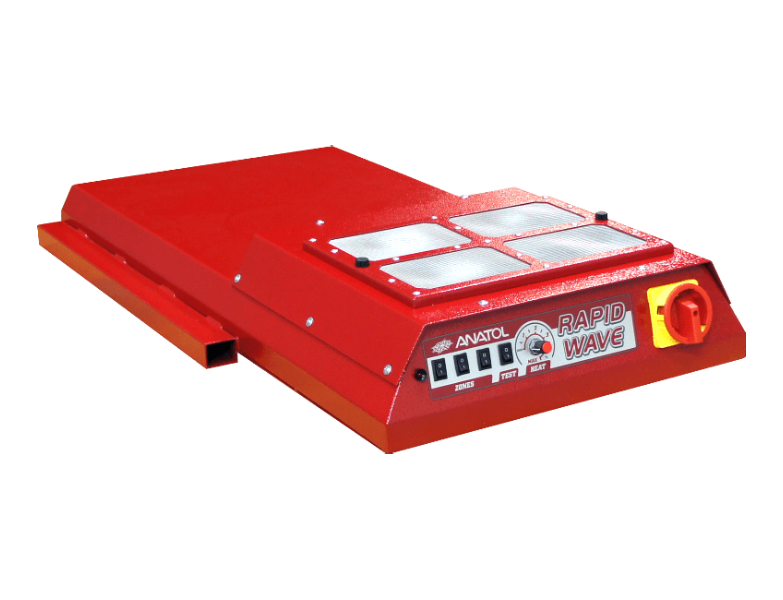

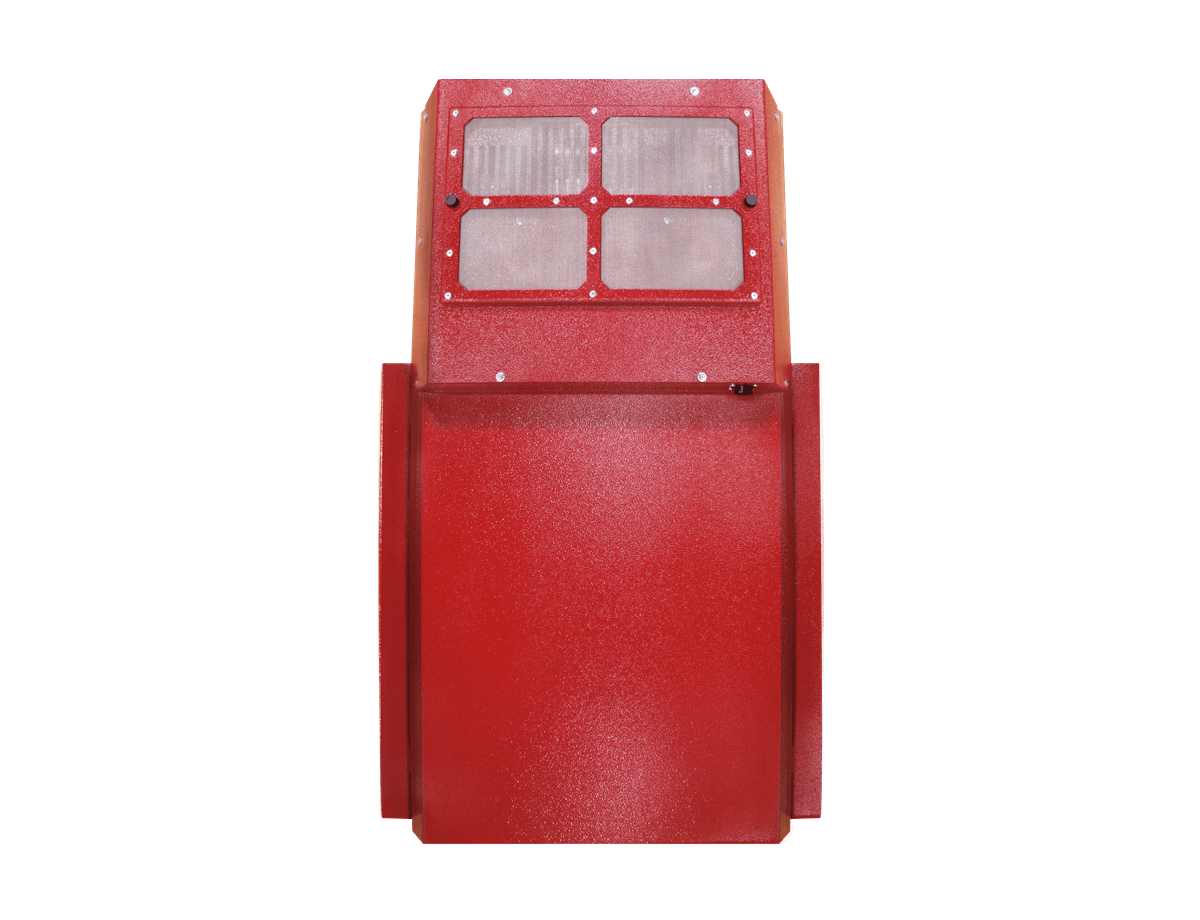

The Rapid Wave Flash is the curing unit of choice for high-volume shops. The Rapid Wave features ultra-fast medium wave quartz lamps with variable lamp intensity control. Quartz flashes use state-of-the-art quartz tubes for rapid flash curing and are the next step up from using an infrared flash dryer. Quartz flashes heat quickly and shut down between cures to save electricity and reduce heat in the shop. Units are available with temperature sensors, allowing you to program the flash to achieve a set temperature via your Anatol automatic press’s touchscreen. The Rapid Wave Flash has three zones that can be activated independently or in combination: front, center and back. The Rapid Wave Flash Cure is available in five models, from standard (16” x 16”) flash areas up to over-sized (30” x 40”) flash areas.

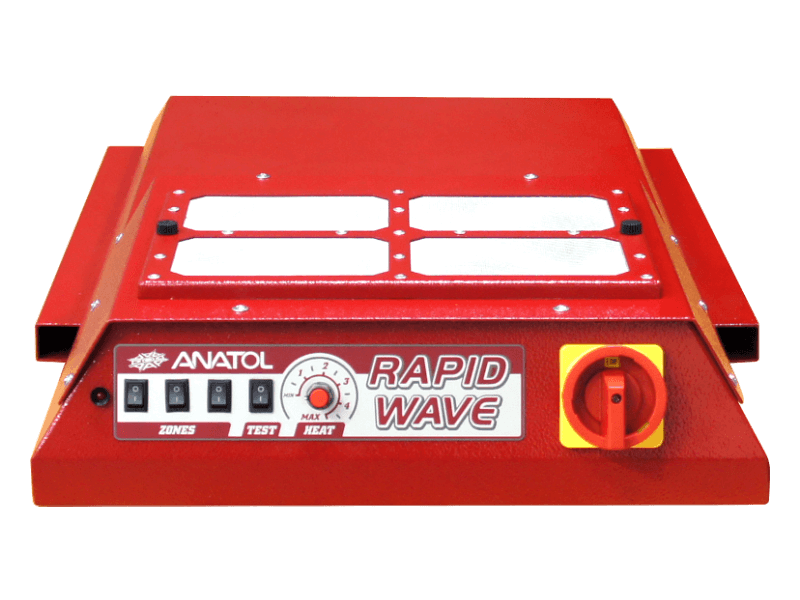

Controls
  • For head-mount, integrates with touchscreen interface on Anatol automatic presses
  • Variable lamp intensity controls to fine-tune heat setting
  • Set how many bulb zones (1-3) flash at once
Heating System

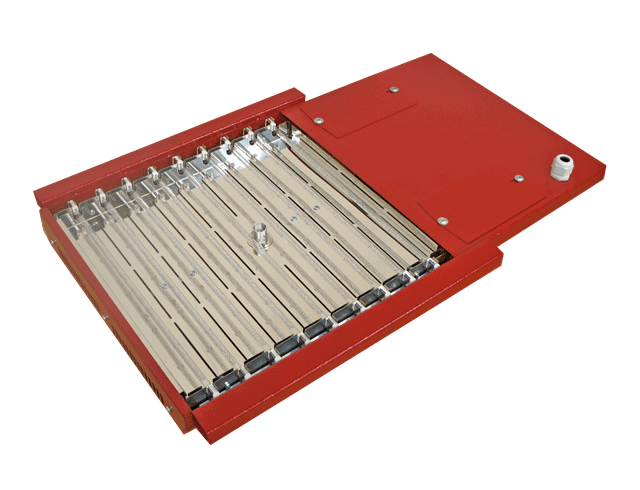

  • Quartz tube bulbs heat and cool quickly
  • Bulbs arranged horizontally in zones to fit more bulbs than comparable flash units, with more control
Construction
  • Can be mounted on height-adjustable floor stand or a head of an Anatol automatic press
  • Heavy-duty steel construction

Additional information

Title

Default Title
