Description
HydrAton 1642
Water-based UV Curable Printer
Our new water-based UV curable ink provides many benefits over the more traditional ink technologies of eco-solvent, resin and UV, such as instant dry for immediate lamination, low VOC’s for low-odour, no SVHC’s (Substances of Very High Concern) making it safer to use, lower drying temperatures for reduced running costs and expanded substrate compatibility for flexibility in print jobs that you provide.

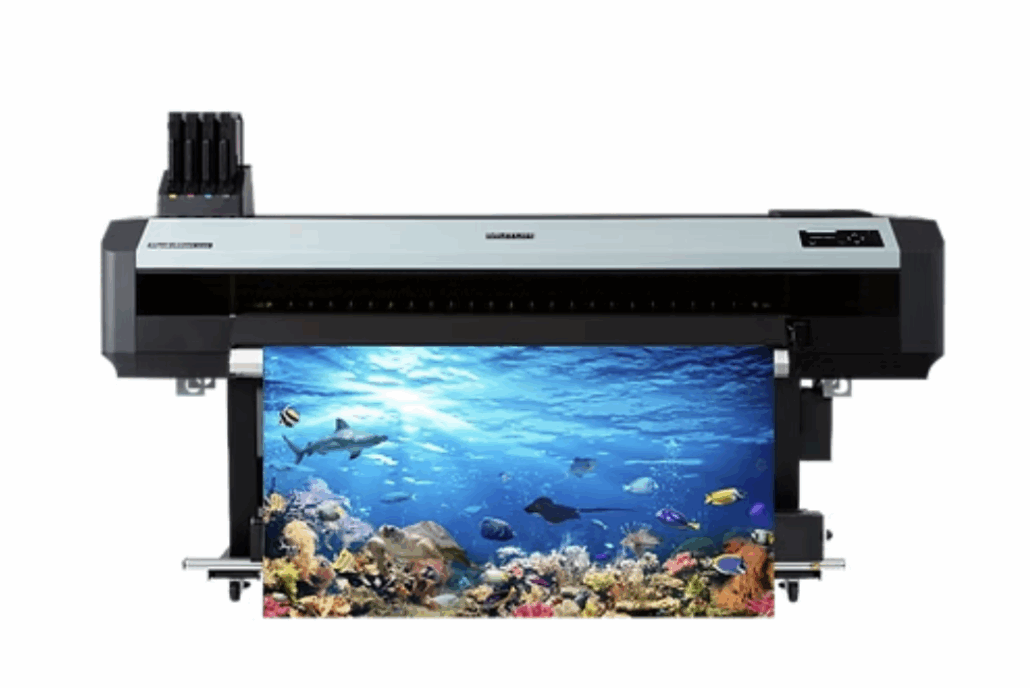

Redefine print flexibility for your high-end graphics with the HA-1642 roll-to-roll wide-format UV curable printer. The 1625mm (64”) wide printer delivers rich consistent colour, print after print after print, making it ideal for the commercial print and sign & display markets as well as interior decor specifically wallpaper. Using MUTOH’s GREENGUARD GOLD certified AQUAFUZE water-based UV curable ink enables printing on a wider range of roll substrates that are safe for installation in sensitive environments.
Integrating dual, 1200 nozzle print head, platen heater and efficient blower together with a wide long-life 4” (101.6 mm) UV LED lamp mounted on the front of the carriage, the HA-1642 will deliver print resolutions up to 1200 x 2400 dpi.
Prints are instant-dry, ready for application or post-treatment and unlike other ink technologies on the market, HydrAton can produce graphics without odour or media shrinkage, while giving high abrasion resistance and low film thickness. All of this is done while using low-temperature heaters and a wider substrate compatibility, reducing running costs but increasing flexibility of use.
With HydrAton’s many advantages, you can choose to offer a more diverse range of printed products or own a unique niche without the traditional compromises of extractions systems or out-gassing.
Outstanding Benefits
Roll to Roll
Continuous roll to roll productivity up to 1615mm print width.
Time Saving
Instant cure, roll to roll production. Prints come out dry and ready to finish or deliver.
Ink Cure
2 x AccuFine printheads for high speed CMYK printing.
Versatility
Print onto a wider range of media including heat-sensitive substrates, vinyl, benner, canvas, wall covering, PP, PE and more.
Variable Dot
Large dots for saturated coverage, small dots for detail and medium dots for everything in between.
Think Green
Lower energy consumption without te need for optimisers or overcoats. AQUAFAZE UV ink has low VOCs and no SVHCs.
